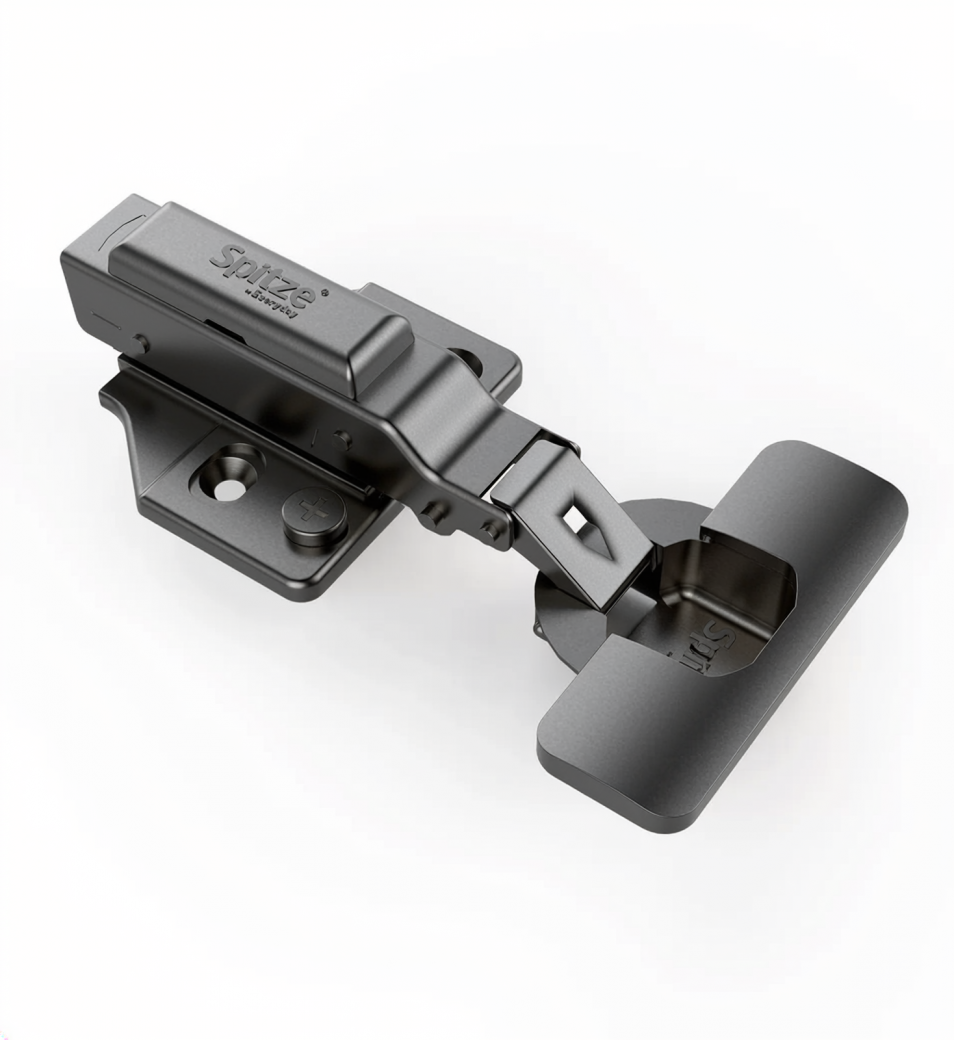

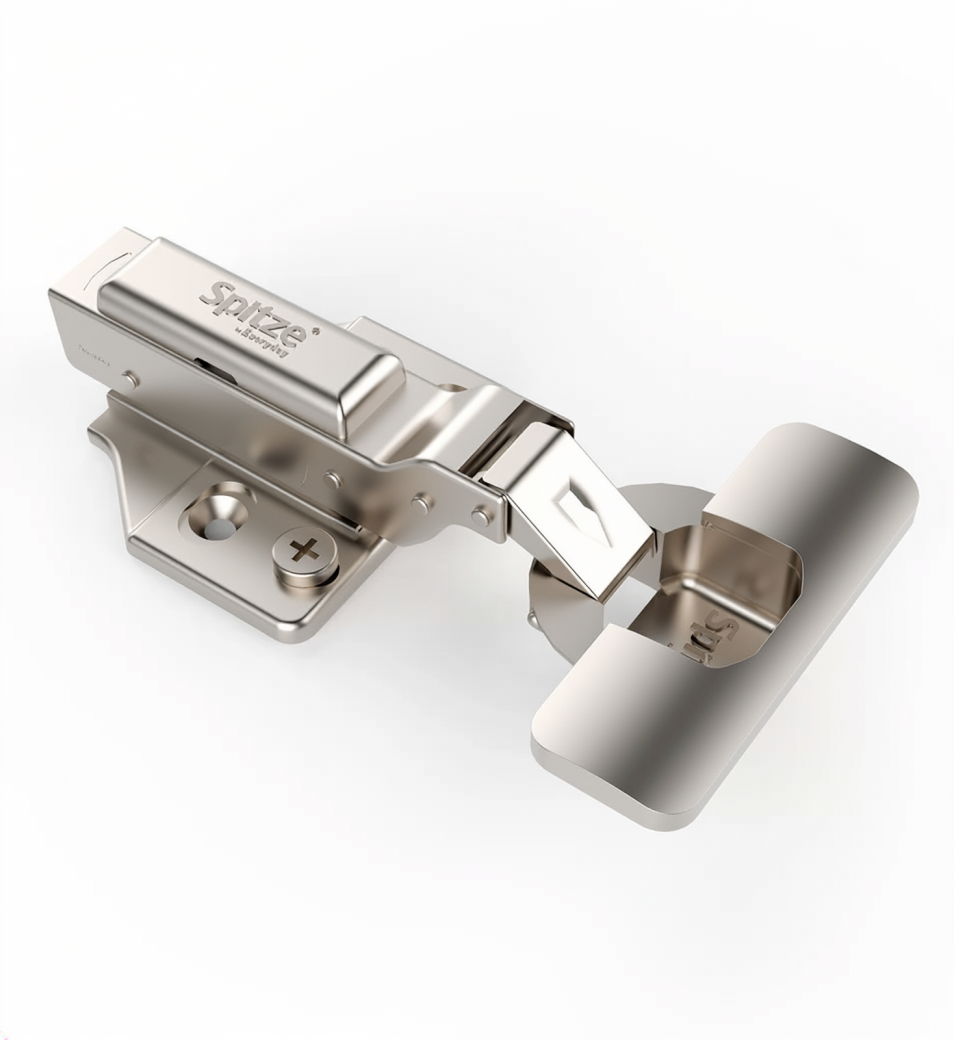

3D 0 Crank Hinge
3D 8 Crank Hinge
3D 16 Crank Hinge
Soft Closing 3D Hinges Features
Material: Nickel Plated Steel
DIY Product (Do it yourself)
Quite and Smooth Performance
Clip on
Weight Capacity: 5kgs
Quick Installation and Dismantle
Soft Closing- 50,000 Cycles Tested
- 3 Dimensional Adjustment
- Height of Hinge Cup: 11.5mm
- Recommended Door Thickness: 16mm - 22mm
Soft Closing 3D Hinges Technical Specifications
0 CRANK HINGE
| DHK | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|
| 0 | 17 | 18 | 19 | 20 | 21 |
| 2 | 15 | 16 | 17 | 18 | 19 |
8 CRANK HINGE
| DHK | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|
| 0 | 8 | 9 | 10 | 11 | 12 |
| 2 | 6 | 7 | 8 | 9 | 10 |
16 CRANK HINGE
| DHK | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|
| 0 | 3 | 2 | 1 | 0 | -1 |
| 2 | 5 | 4 | 3 | 2 | 1 |
